XP Slide Panoramic+
Premium Glass Sliding Door
The XP Slide Panoramic+ sliding patio door offers a contemporary design statement for the most discerning homeowner. Absolutely minimal frame and maximum glass mean we can offer a beautiful glass sliding door that we believe is finest panoramic sliding door available in the UK.
The superb design of the system not only ticks all the boxes from an aesthetic point of view but the specifications of the system are unrivalled with premium grade aluminium giving it great stability and IX values, stainless steel rollers making operation both silent and easy and it’s triple glazing ensuring extremely low overall U values.
Minimal Sightlines
The premium and architectural design of our brand-new panoramic sliding door system, the XP Slide Panoramic + incorporates glass that is structurally bonded to the frame, giving it a vertical sightline of just 25mm. The outer frame of the door is designed to be completely concealed by the internal and external wall, giving the appearance of uninterrupted glass for an effortlessly sleek finish.
our slimmest sliding door
As well as looking superb we have also designed a lockable cylinder into the contemporary interior handle, meaning we can offer a three-point lock including a moving central latch and three heavy duty keeps, creating an extremely secure glass door suitable for stringent UK building regulations without the need for an electronically or magnetically operated lock.
The system is designed for installations into exposed locations and boasts superb thermal efficiency thanks to it’s minimal framework and triple glazed offering.
Overall U values as low as 0.8 W/m2k
Moving corner post available
Typical sightline of just 25mm
Contemporary incorporated locking handle
Key features
- Structurally bonded system meaning less frame and more glass.
- The slimmest sliding door within our product portfolio.
- No visible profiles at the head and foot of the door.
- The doors slender outer frame means is designed to be concealed internally & externally to create a stunning glass door.
- High weight limit of 500kg per panel.
- Expertly manufactured in-house with specialist lifting equipment to minimise the handling of the product during manufacture
- Multi-point locking with shootbolt & keeps on the master door.
- Internal key locking passes British insurance regulations without the need of a magnetic or electric lock.
- Triple glazed as standard
- Four person installation team offered as standard due to height weight of the door
contact our sales team
This exciting new product is already on display in our Leeds showroom. The depth of the XP Slide Panoramic + profiles means that openings need to be constructed specifically to house this unique product. Contact our sales team today or visit a showroom to discuss these technical details & to make sure you showcase your new panoramic sliding door to its full potential.
A premium product manufactured & installed by the experts

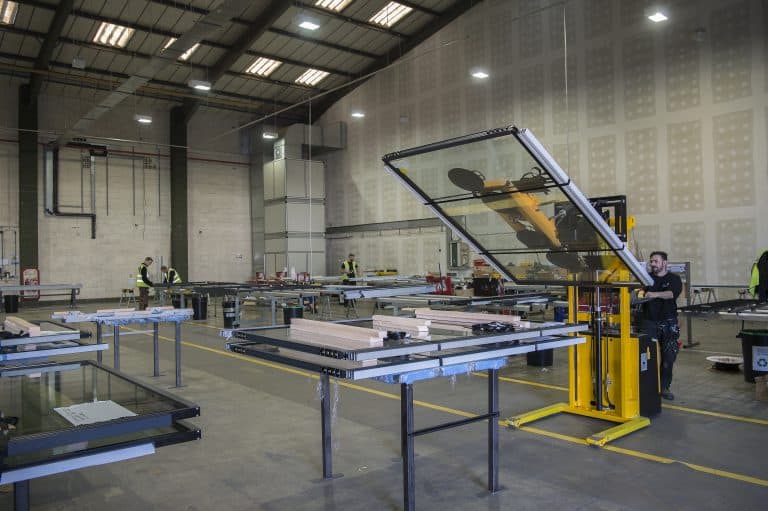

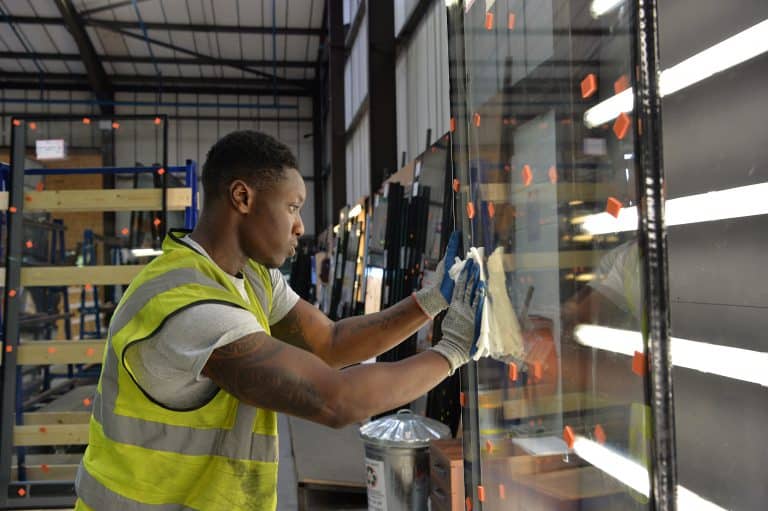

The growing trend for maximum glass & minimal sightlines has seen manufacturing & installation methods evolve to meet the demand for minimal glass sliding doors within luxury new-builds & renovations. We have been manufacturing innovative products for years and the production of our slim-line patio doors is no different. Prior to manufacture we inspect the glass that will make up most of the doors on our purpose-built glass checking area. Specialist lifting equipment is then used to position the glass in place for our engineers to bond the framework to the glass. Meticulous attention to detail is given throughout the production phase, which once complete leads to a cool down period where we leave the bonded frame to cure to the glass for a strong & secure product. The bespoke doors are then wrapped and stored safely until the installation is set to take to place.
Expertise throughout every stage
Our sales team will liaise with you, your builders and your architect to ensure that the XP Slide Panoramic + is shown off to its full potential. The track sits on a drainage and outlet profile so ideally suited for a flush finish from inside to out. The doors outer frame is only 70mmmm so looks fine exposed but can also be completely concealed with internal plasterwork and external render or cladding so the only visible profiles in the doors are just the 25mm vertical transoms, this means the door is completely glass except for the slimline vertical profiles that are only 25mm wide – wow! From sales, to survey, to installation we’ll work with you & our expert advice will cover everything from preparing the opening properly with a solid base to take the weight of the door, solid cavities for fixing points, and those all-important measurements to ensure all frames a concealed to create a stunning and secure glass sliding door.
All profiles designed to be concealed
virtually frameless sliding door
Virtually frameless
The outer frame is designed to be concealed by external cladding or render.
Secure locking
The locking handle is bonded to the sliding door and boasts an internal and external latch that controls the five-point lock.
Easy & silent operation
The door slides on stainless steel rollers in the bottom track
Concealed sash
The sash is concealed at the head and foot of the door resulting in minimal frame & maximum glass.
XP Slide Panoramic + Frequently Asked Questions.
Is there visible profile at the top and bottom of the door?
No, the sliding door sash sits within the doors outer frame so is completely concealed.
Does the outer frame need to be concealed for the door to look right?
No, the depth of the outer frame is only 70mm at the head and down the sides so even if this is not concealed internally and externally it is still a relatively slim frame because there is no visible sash. You have 70mm of profile and then glass, the transom is then only 25mm so even with the outer frame visible this is still a slim-line, glass sliding door.
How does the door lock?
The door contains three lock catches and keeps and a two-point shoot bolt lock. The contemporary handle has a built-in latch that you push down when the door is closed to operate and secure the five-point lock. The latch also boasts a lockable key cylinder for UK building regulations.
How does the door drain water away?
The track is drained straight down onto a 50mm high base profile that the door sits on. The base profile is sloped a sloped and is designed for the drain the water away from the doors into an external drainage system. The height of the bottom track is substantial at 103mm and it has been designed to completely concealed for a flush finish inside to out. Because the track is substantial it is important to liaise with our team early in your project to ensure the openings are prepared correctly for this aspirational product.
Are textured elite and essence colours available with this door?
Yes but in a fine textured finish, because the frames are so slim textured paint can create friction within the door, so if a textured finish is preferred we recommend a fine textured powder coat finish.
Are integral blinds available within this slim-line sliding door?
No, because of how the door is manufactured we cannot offer integral blinds within this product.
What is the maximum size of this door?
There is no strict weight limit for this product as the system is so well engineered. The system is triple glazed as standard so does get expensive when 8mm glass is required so keeping each panel under 5m2 will keep the costs down.
There is a surcharge from our glass suppliers if a glass unit is in excess of 7m2 so this needs to be considered because cost is always a factor in any project.
Specification
• Twin and triple track outer frame designed to be built into the walls, floors and ceilings
• Panel profiles are completely concealed in the upper and lower outer frames
• Slender but incredibly strong sightline of 25mm
• Maximum weight of 500kg per panel.
• 52mm triple glazing offered as standard
• Door panels are made using state-of-the-art insulation material with high thermal parameters
• The cutting-edge sliding seals used in the frame are aesthetically pleasing and silent in use
• Bottom track rollers are available in stainless steel or black polyamide
• State-of-the-art drainage system drives water away from the door
• The structural base has excellent thermal isolation
• Air permeability: class 4, PN EN 12207
• Watertightness: class 8A (450 Pa) PN EN 12208
• Wind load resistance: C3 (1200 Pa)/B3 (1200 Pa) PN EN 12210
• Installed with a four-person team as standard plus specialist lifting equipment
• Size limitations based on a height to width ratio, which is governed by the glass size
Get the full specifications
We'll email you a link to download the full specifications
